● SMD 3030 LED, high luminous flux, energy saving obviously.
● Meanwell or Sosen Driver .
● Die casting Aluminum heat sink, better for heat dissipation.
● Tempered explosion-proof glass cover,light transmittance over 95%,strong and durable.
● Protection rate: lP65 & IlKO8.
● Unique G-type clips, without screws, more fixed and elegant appearance.
● Silicone Rubber, Resistant to UV.
● 3/5 years warranty.
Applications:
Warehouses, construction sites, schools, parking places, shopping malls, high-speed rail station, terminal, bus terminal, subway station.
Specification
Video
Contact
Technical Specifications | |
Materia | Die casting aluminum |
Housing Color | Black |
CCT | 3000-6000K |
Input Voltage | AC100-265V |
Power | 50W/75W/100W/120W/150W/200W/250W/300W |
Beam Angle | 120° |
LED Chip | SMD3030 |
Driver | Sosen / Meanwel |
CRI | >70Ra |
IP & IK Rating | IP65 IK08 |
Lifespan | 100,000 Hrs |
Model NO. | Wattage | Voltage | Led chips | CRI | Beam Angle | CCT | Dimension | Lumens |
AU 02-FL50WXX | 50W | AC100-265V | SMD3030 | 70Ra | 120° | 3K/4K/5K/6K optional | 220*310*50mm | 5750ml±5% |
AU02-FL75WXX | 75W | AC100-265V | SMD3030 | 70Ra | 120° | 3K/4K/5K/6K optional | 245*355*55mm | 9750ml±5% |
AU 02-FL100WXX | 100W | AC100-265V | SMD3030 | 70Ra | 120° | 3K/4K/5K/6K optional | 295*402*60mm | 13000ml±5% |
AU02-FL150WXX | 150W | AC100-265V | SMD3030 | 70Ra | 120° | 3K/4K/5K/6K optional | 330*430*60mm | 19500ml±5% |
AU 02-FL200WXX | 200W | AC100-265V | SMD3030 | 70Ra | 120° | 3K/4K/5K/6K optional | 360*470*60mm | 26000ml±5% |
AU02-FL250WXX | 250W | AC100-265V | SMD3030 | 70Ra | 120° | 3K/4K/5K/6K optional | 390*480*60mm | 32500ml±5% |
AU 02-FL300WXX | 300W | AC100-265V | SMD3030 | 70Ra | 120° | 3K/4K/5K/6K optional | 390*480*60mm | 39000ml±5% |
Features and Benefits:
1. SMD 3030 LED, high luminous flux, energy saving obviously.
2. Meanwell or Sosen Driver .
3. Die casting Aluminum heat sink, better for heat dissipation.
4. Tempered explosion-proof glass cover,light transmittance over 95%,strong and durable.
5. Protection rate: lP65 & IlKO8.
6. Unique G-type clips, without screws, more fixed and elegant appearance.
7. Silicone Rubber, Resistant to UV.
8. 3/5 years warranty.
Installation caution
◆ Product must be installation by licensed electrician.
◆ Disconnect or turn off the power before installation.
◆ Verify the supply Voltage is the same as rated luminaire voltage.

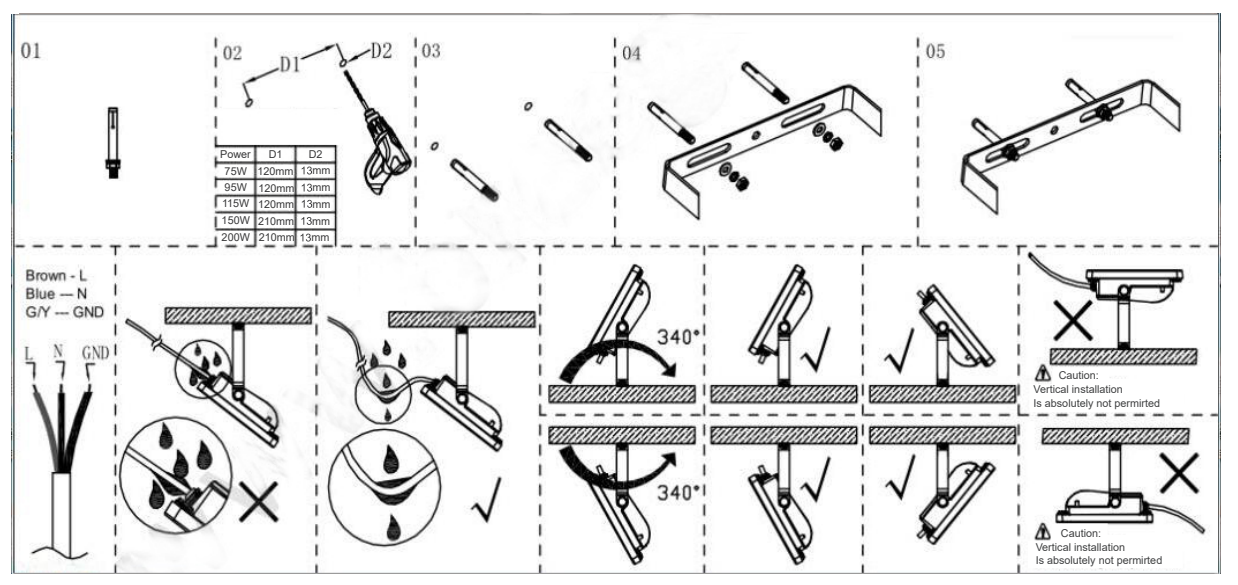

Installation:

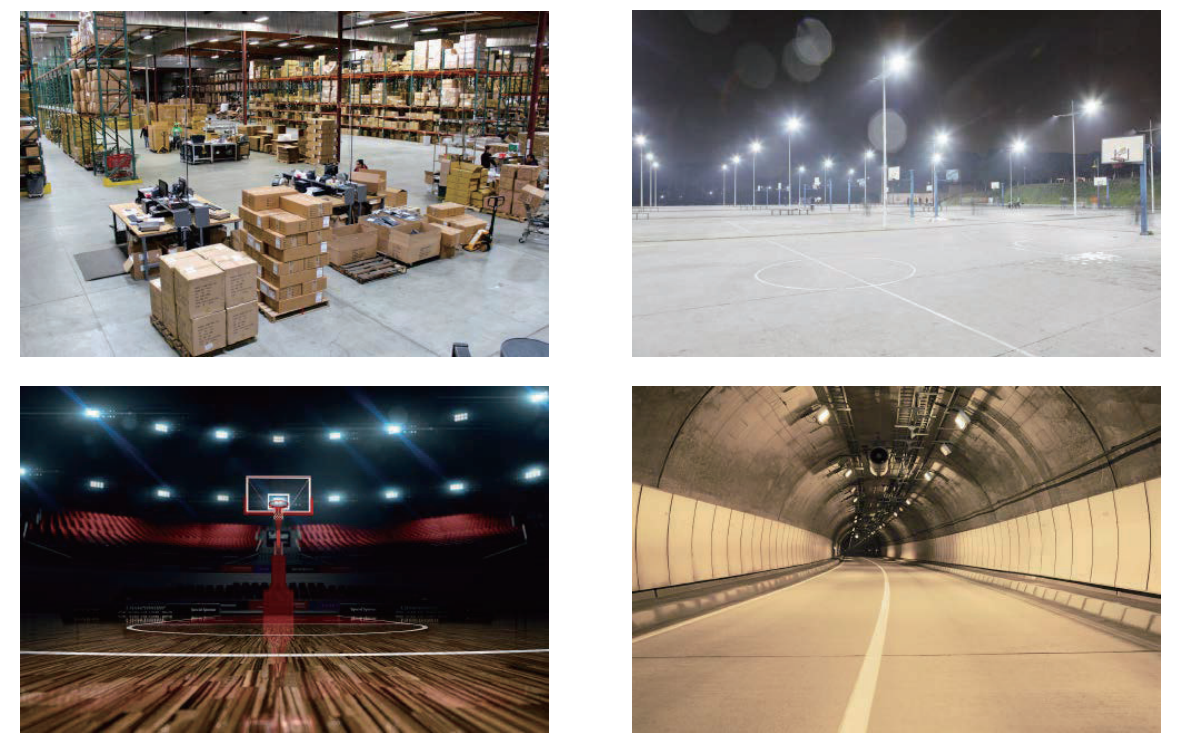

Application:
Warehouses, construction sites, schools, parking places, shopping malls, high-speed rail station, terminal, bus terminal, subway station.
