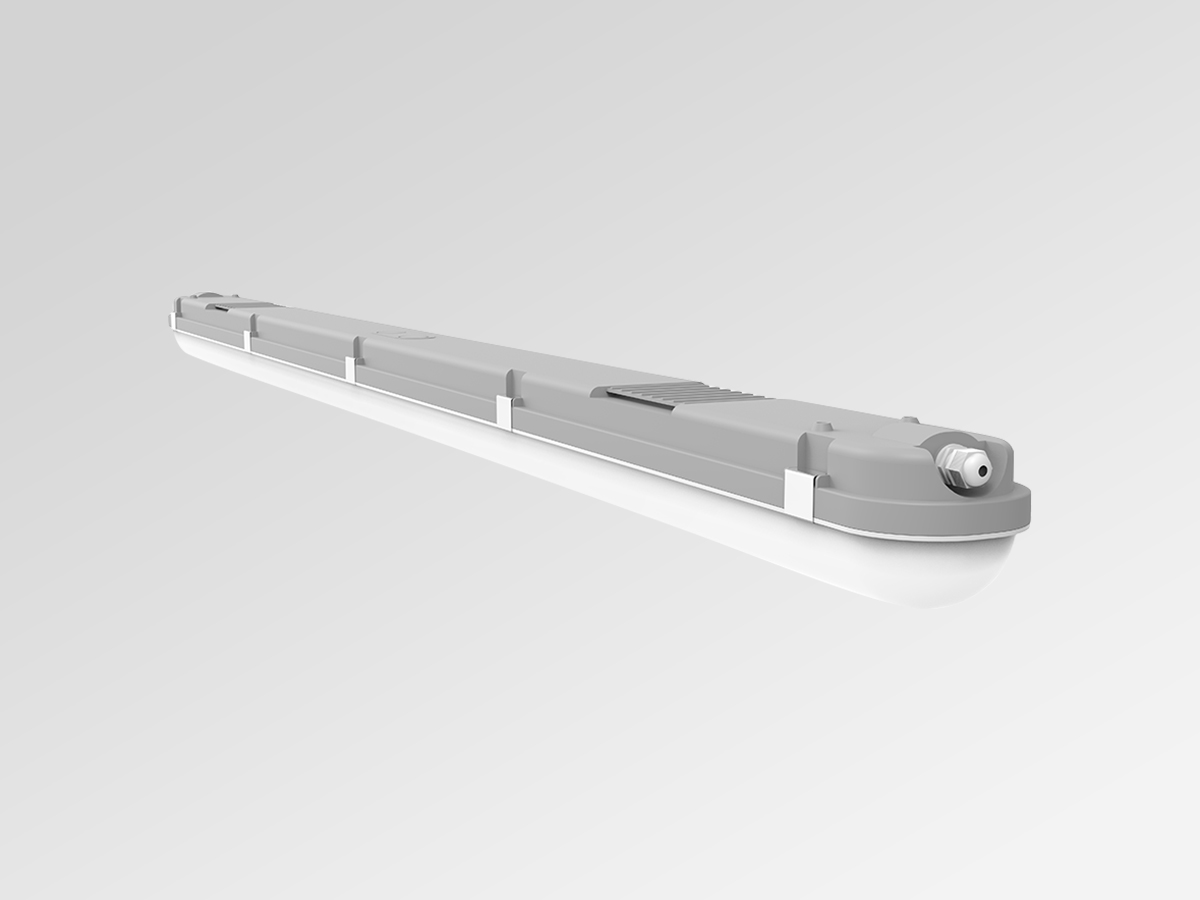

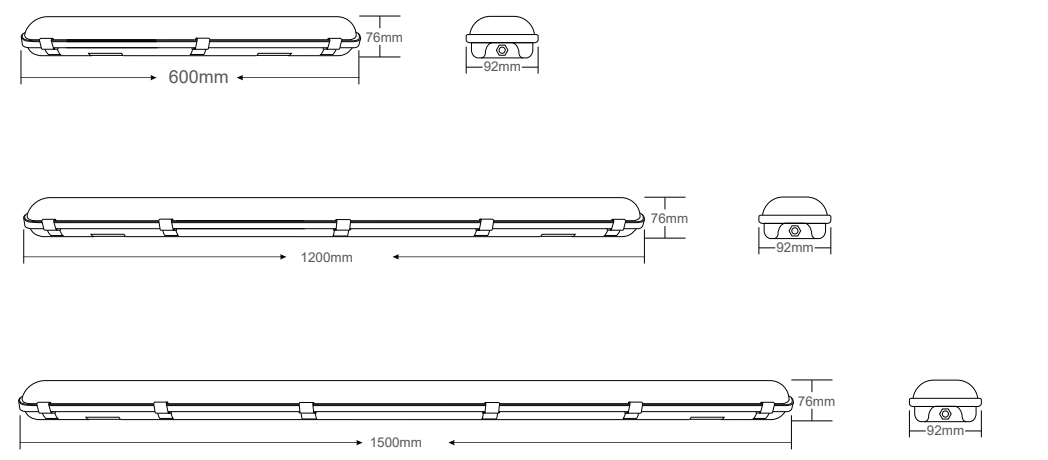

Product Dimention

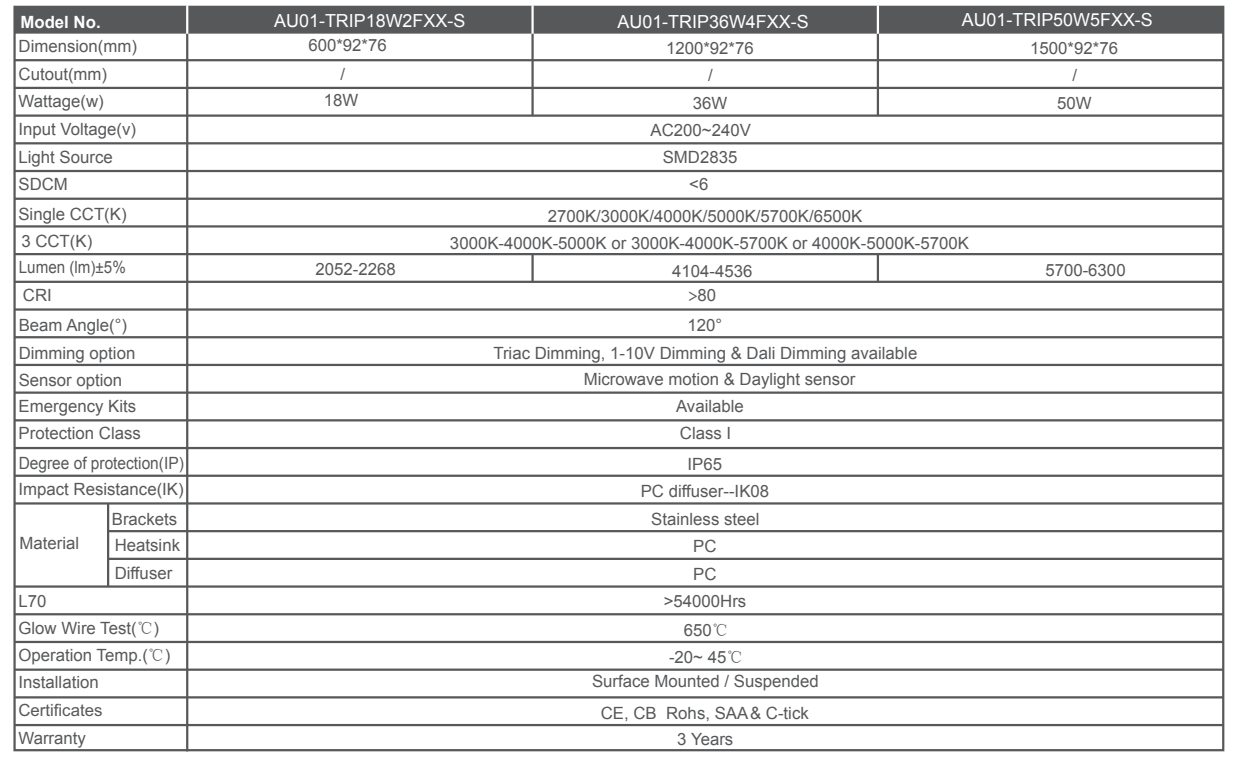

Technical Specifications

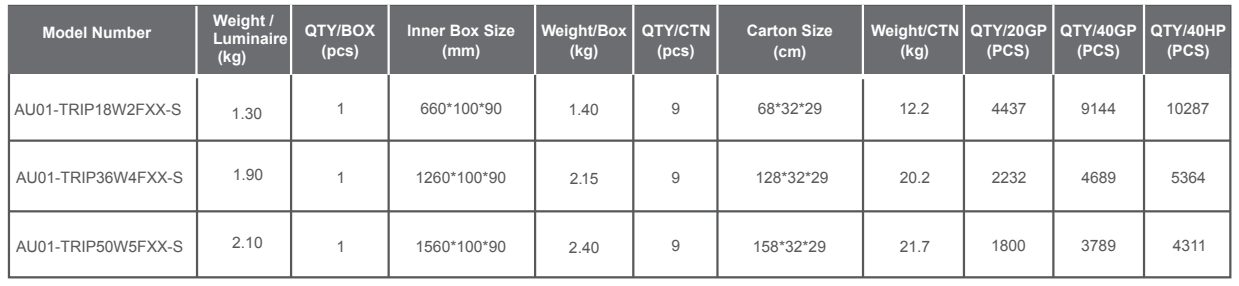

Packing information

Parameter

Function

Dimension(mm)

Wiring

*Without auxiliary 12Vdc interface driver, MC103S can be an option of power supply for sensor

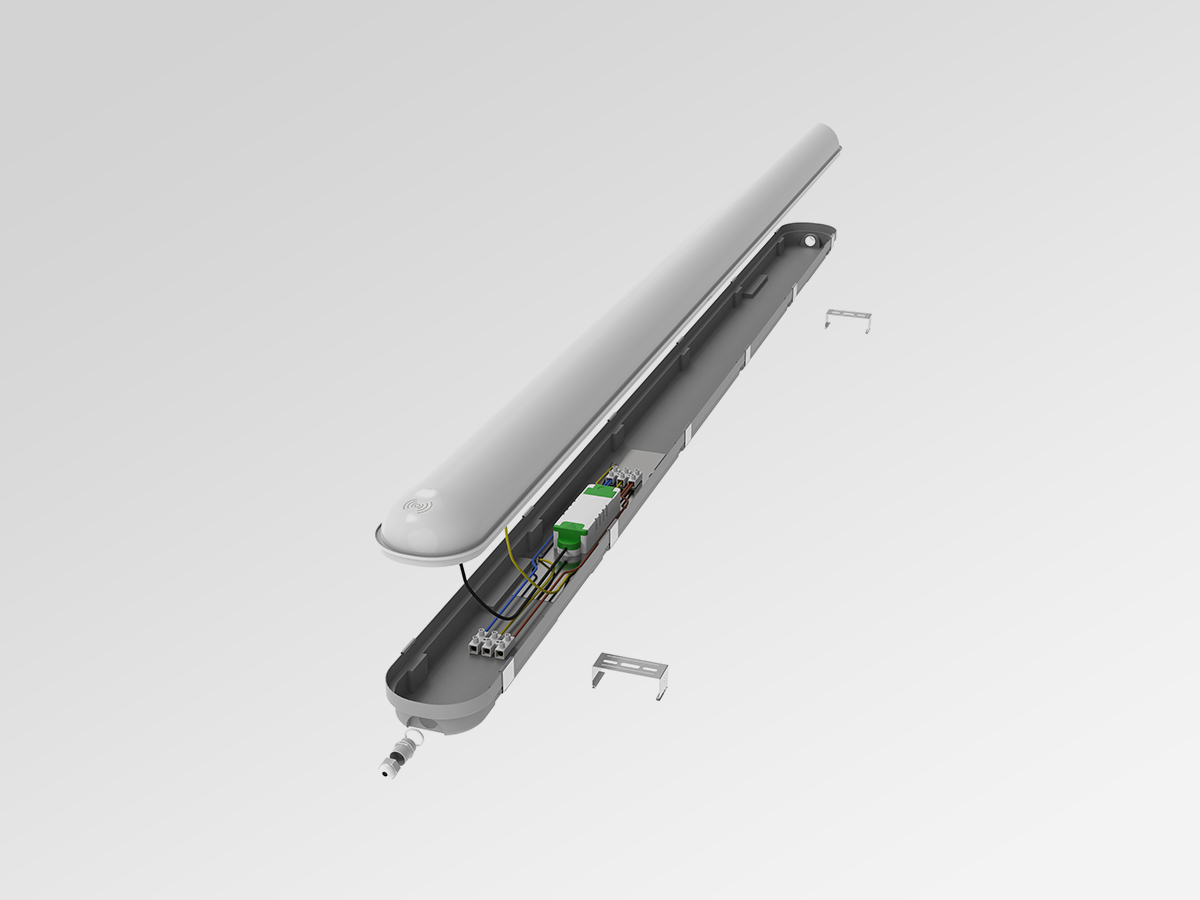

Structure and installation

Radiation Pattern

    Ceiling mounting

*Only 100% detection sensitivity is workable when installed at 4m mounting height. 25% /50% sensitivity is not able to detect motion signal.

    Wall mounting

Remote control

Factory Setting

Detection area: 100%, Hold Time: 5S, Stand-by Period: 0s, Stand-by dim level: 10%, Daylight Sensor: Disable

Application Notice

1) The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.

2) The sensor which installed in the plastic and glass lampshade will reduce the sensitivity.For every 3mm increase in thickness, the sensitivity will be reduced by 20%.

3) The dimming performance could be different from different 0/1-10v drivers.

4) The light sensitivity threshold is in a sunny environment, no shadow and ambient light diffuse reflection..Ambient lux level could be different in different environment, weather, climate, time-of-day and season.

5) The parameters of the sensor may need to be reconfigured in different installation environments. Please refer to the following instructions or contact the manufacturer.

6) Sensor could be triggered by wind and rain,as well as the moving objects nearby,if apply outdoor.

7) The mounting height is no more than 4m,proper mounting height is 3m;the distance between any inductive sensors should be greater than 3m.

8) Do not place the sensor close to high-density objects such as metal, glass,concrete walls, etc, false triggering could happen. When the sensor is installed in a metal lamp, metal reflective surface, or a narrow enclosed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.

9) Please ensure that there are no moving signals around the sensor, such as fan,DC motor, sewer pipe, air outlet, etc., the sensor may generate false trigger.

10) You are advised to test 5 samples before mass application of sensor in a new lighting project.

11) Due to continuous improvement, the contents of this instruction could be changed without prior notice

Sensor Option 2：ED164S-Y-R6

Feature & Advantage

■ Compared with the infrared sensor module, the sensing distance is longer and the angle is wider, there is no dead zone, lens and lens aging problem；

■ Not affected by temperature, humidity, airflow, dust, noise, brightness, etc., and has stro anti-i terference ability;

■ Can penetrate acrylic, glass and thin non-metallic ma

■ Built-in MCU, embedded multiple digital filtering algorithms, with higher immunity;

■ Output 0-10V, matching the 0-10V dimming power supply on the market.

Characteristic Description

Be sure to power o ffbefore adjusting DIP switch setting.

Setting

Factory Setting: Detection Area 10 0%, Hold Time 3min, Daylight Sensor D isable, Standby Dimming 20%, Second-Order Delay 15min.

1.Hold Time refers to the time period the lamp remains at 100% illumination after no motion detected.

2.Disable means the daylight sensor does not work. When set to Disable mode, the daylight sensor will switch on the lamp when motion is detected, Regardless of ambient light level. 30lux is twilight operation.

3.Standy Dimming is the low light level that you would like to have after the hold time in the long absence of people.

4.Second-Order Delay refers to the time period the lamp remains at a low light level before it completely switches o ffin the long absence of people. When set to "∞", the low light is maintained until motion is detected. When set to "15min", the light will turn off after 15min.

Application Demo

Specification

■ Note1: The test takes 3m as the test condition,and the range radius is the ground sensing distance;

■ Note2: Thedelay time can be customized according to customer needs;

■ Note3: The trigger intensity of the photosensitive switch canbe customized or the photosensitive control can be cancelled according to customer needs.

Detection diagram

*Note:The distance can be adjusted according to the actual application

Dial definition

Typical application

*Note: OUT output can be customized in ON/OFF mode or PWM dimming mode

Install Instruction

Please Note:

* Product must be installed by licensed electrician.

* Disconnect or turn off the power before installation.

* Verify the supply Voltage is the same as rated luminaire voltage.

Packing List (each inner box)

Tri-proof light: 1pcs

Screw: 6pcs

Brackets: 2pcs

Connector: 1pcs

Clip used to hold the wires: 1pcs

Installation caution

● Product must be installed by licensed electrician.

● Disconnect or turn off the power before installation.

● Verify the supply Voltage is the same as rated luminaire voltage.

Application:
