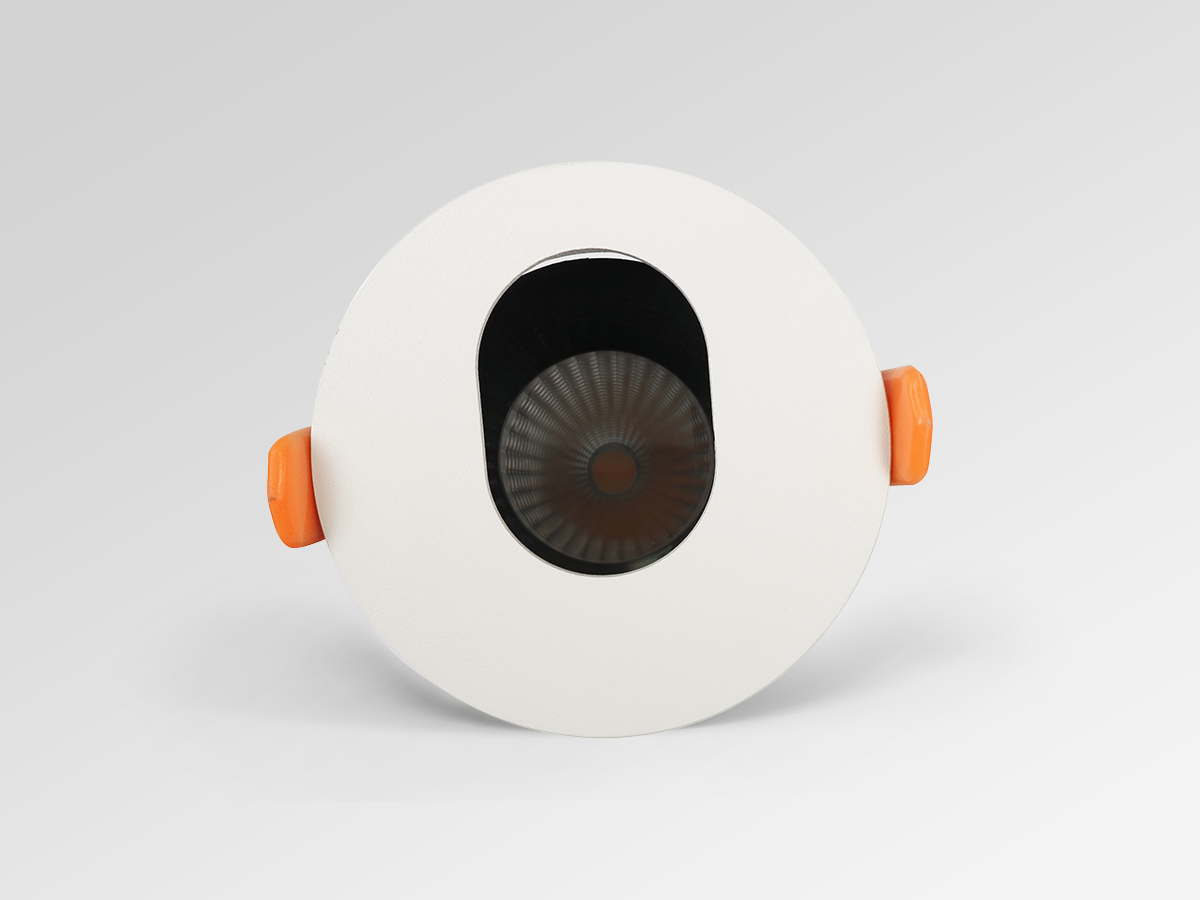

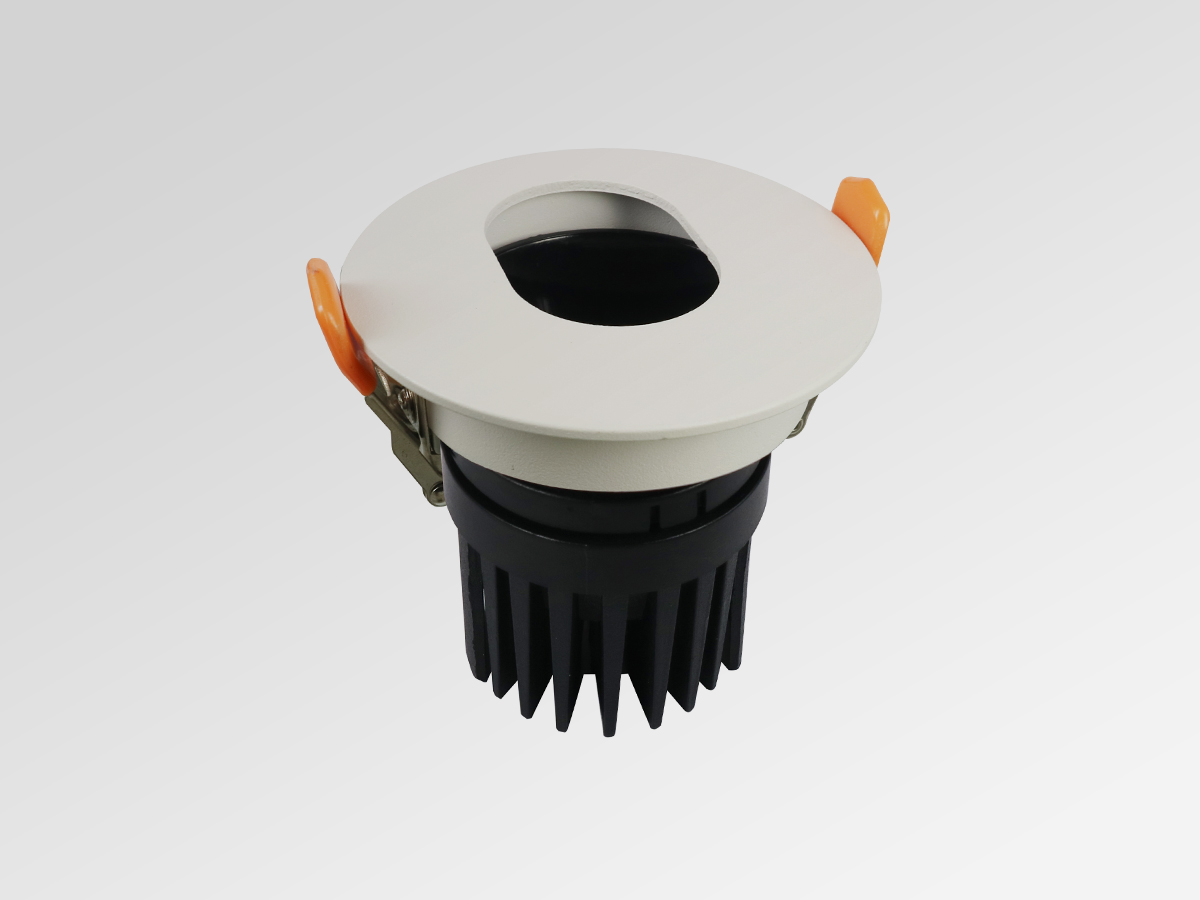

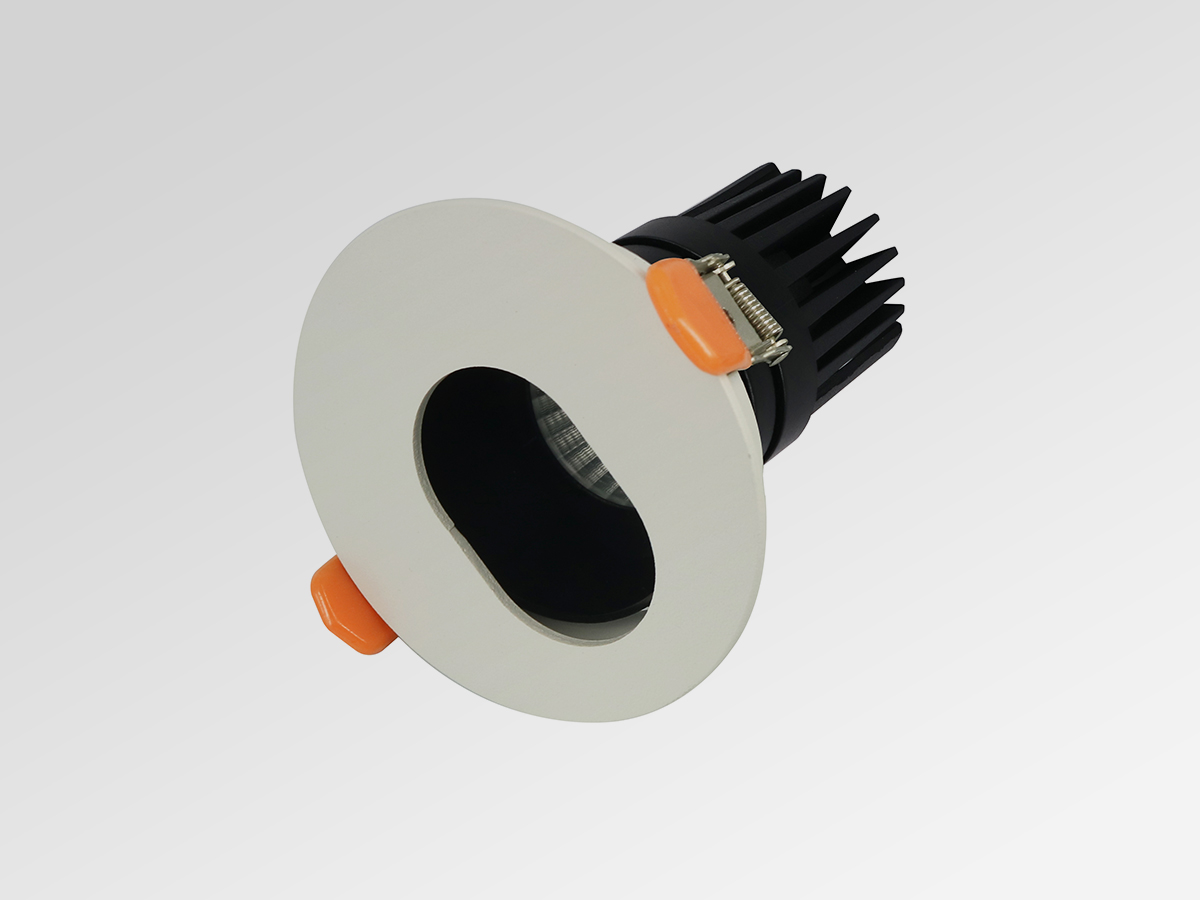

Pinhole LED Downlight Tuya Smart




● Deep set lamp position for maximum visual comfort;

● Advanced die-casting Aluminum heat sink;

● Very narrow light beam 24°/38°;

● Pinhole | Elipse | Square | Semi-circular shape, can be angled or aimed;

● The gimble action directs the full spectrum light in your desired direction

● Dimmable , Support most European and Australian dimmers

● Flicker free led driver, 90Ra led chip are available if required

● SAA, C-tick, CE and RoHS approved

● 3 years warranty


Applications:

  ● Hospitality applications● Residential applications● Office Buildings
  ● Hotels● Shopping Malls● Supermarkets


Specification Video Contact

Product Dimention




General Features

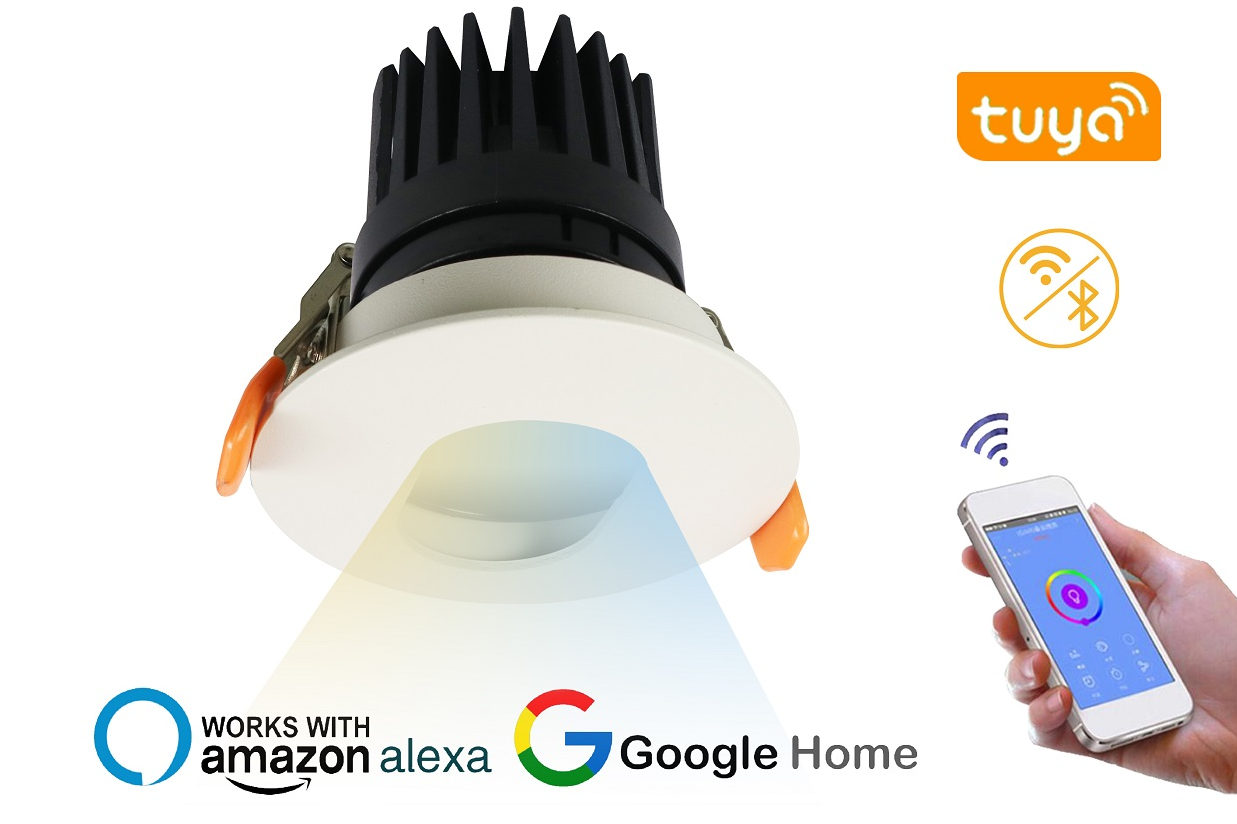

1. Simplify your life: it has a remote control function , you can directlycontrol brightness and color temperature through Tuya APP on your phone. No monthly fees or Hub needed for this product.

2. Different scene modes(Night, Reading, Working, Leisure etc) for you to enjoy the lighting in your life.

3. Timer / Countdown Setting: You can set the lamp to turn on or off at any time you required or after a specific time.

4. Group Control: You can create a group for all your smart lamps and control them all in one command.

5. You can share the lamps with others to control them together.

6. Family management: You can creat a home,then add home members and manage them.

7. Smart voice control: No hub required, works great with Alexa, Google Home and SmartThings etc Inteligent peakers, you can easily turn on/off the lamp and adjust the CCT with just your voice.

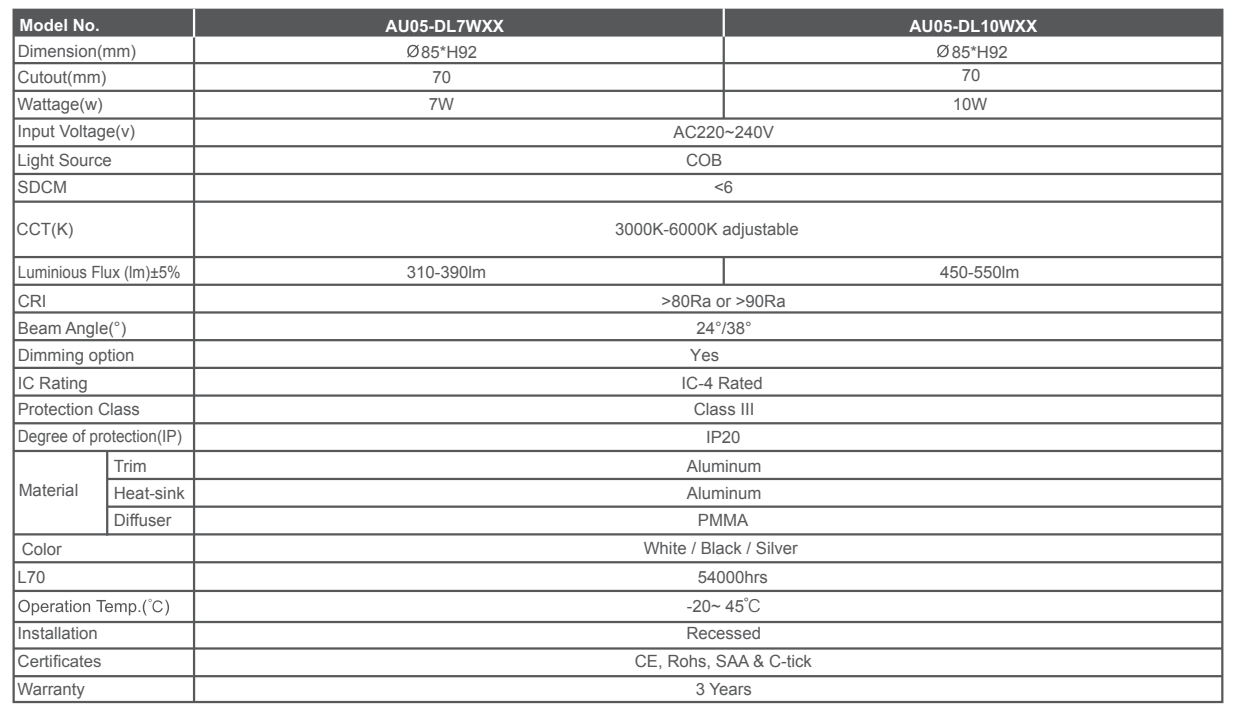

Technical Specifications



Packing information

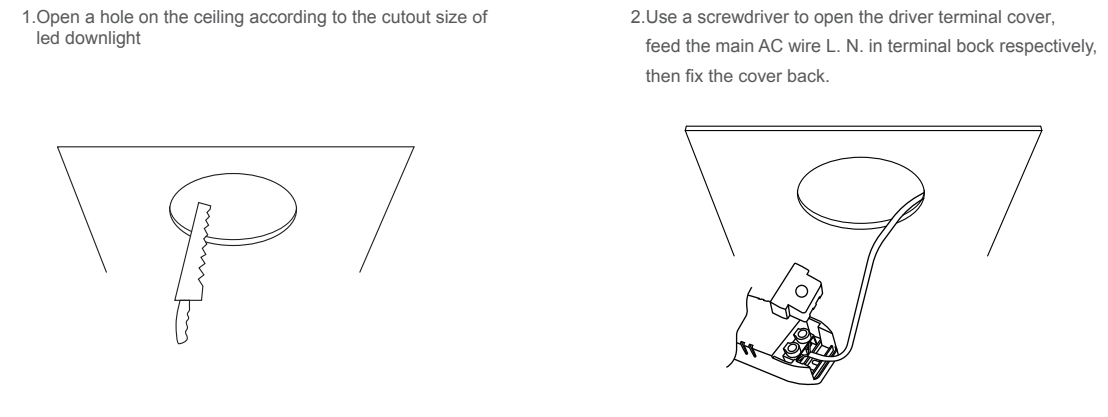

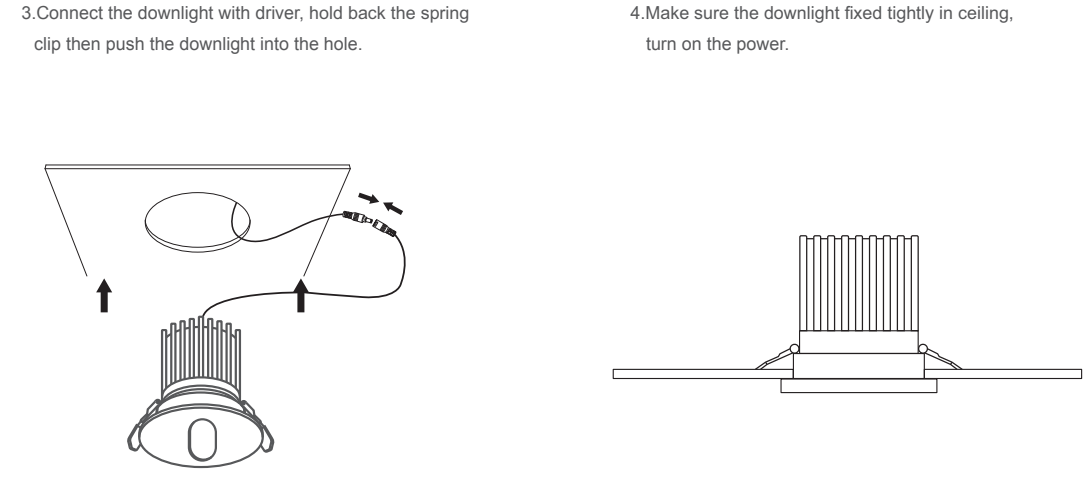

Install Instruction






Please Note:

* Turn off and isolate the electrical supply before connecting this fitting to the building wires.

* Must be installed, or connected by licenced electrician.

* The Luminaires are intended for indoor use only.
