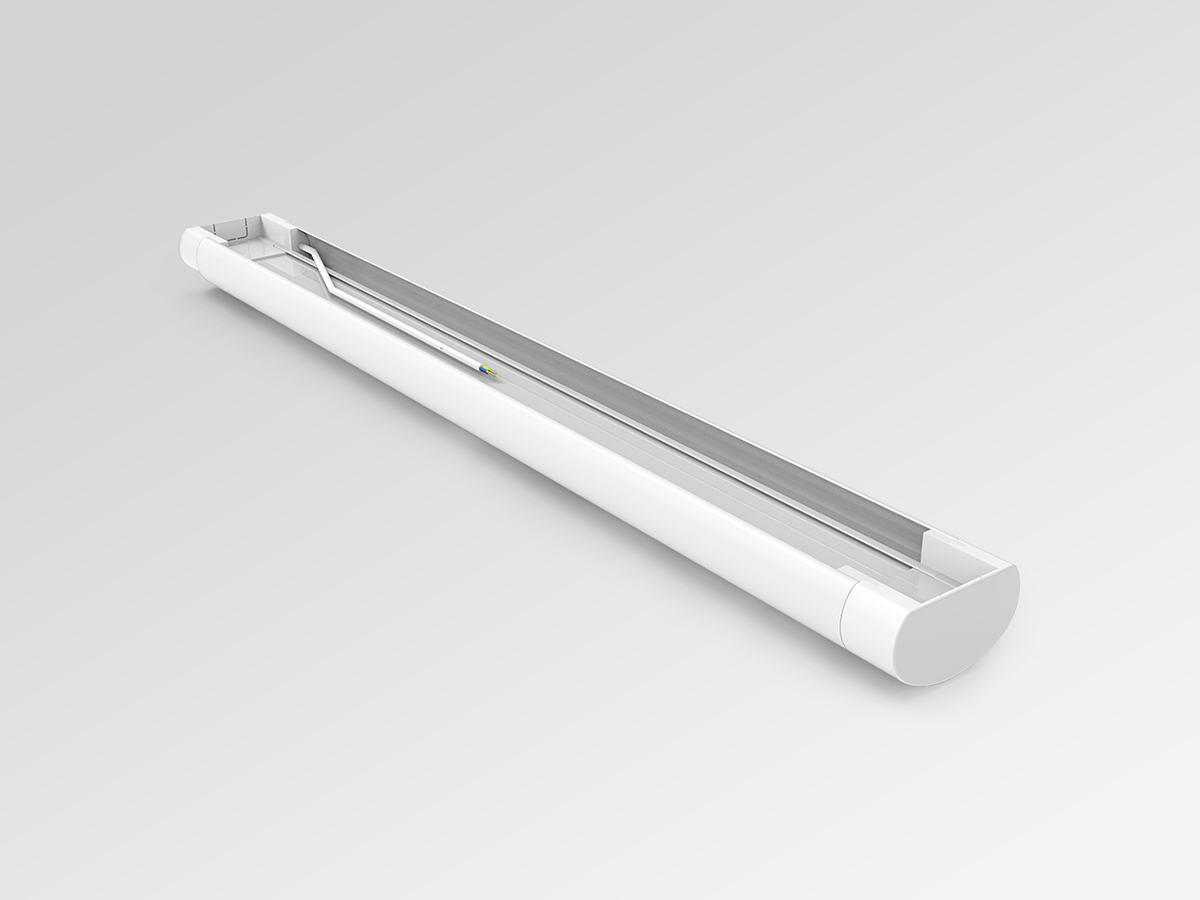

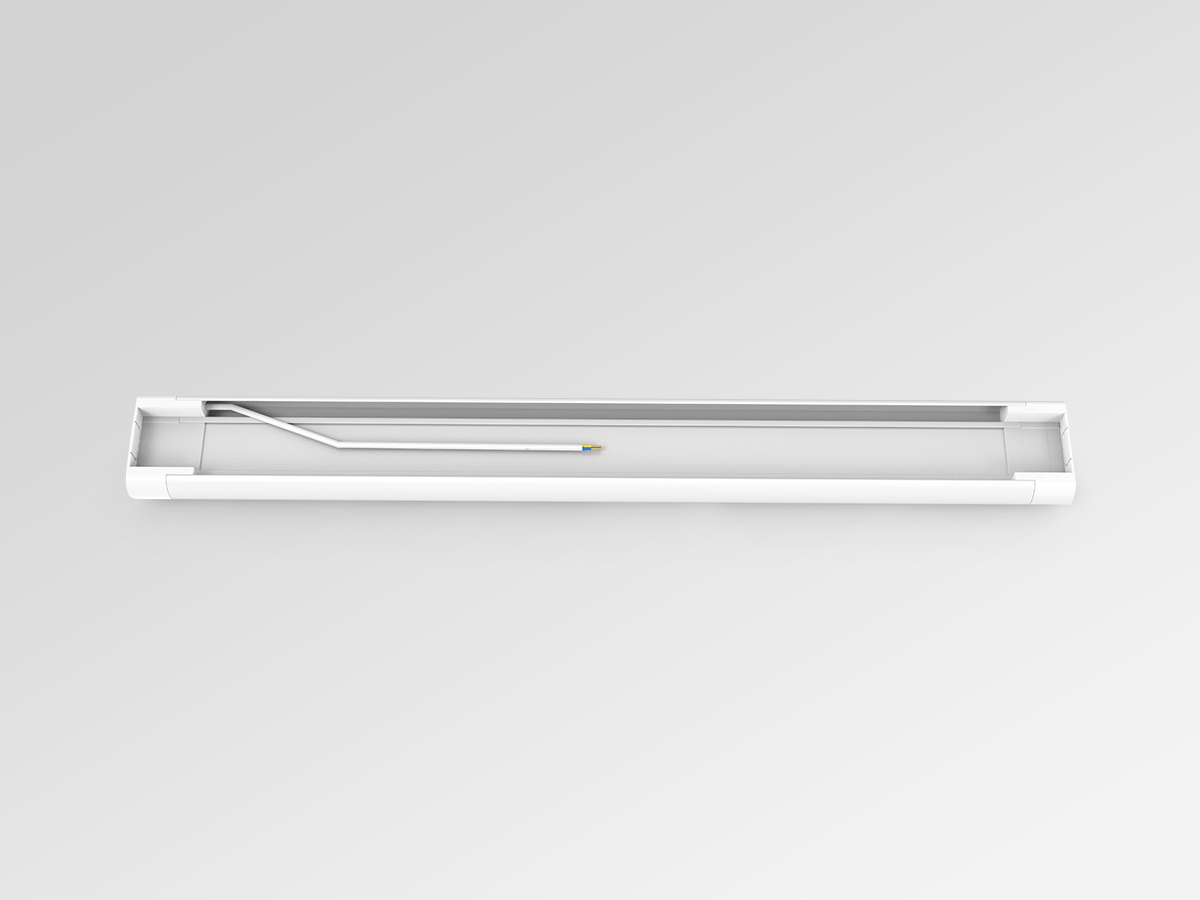

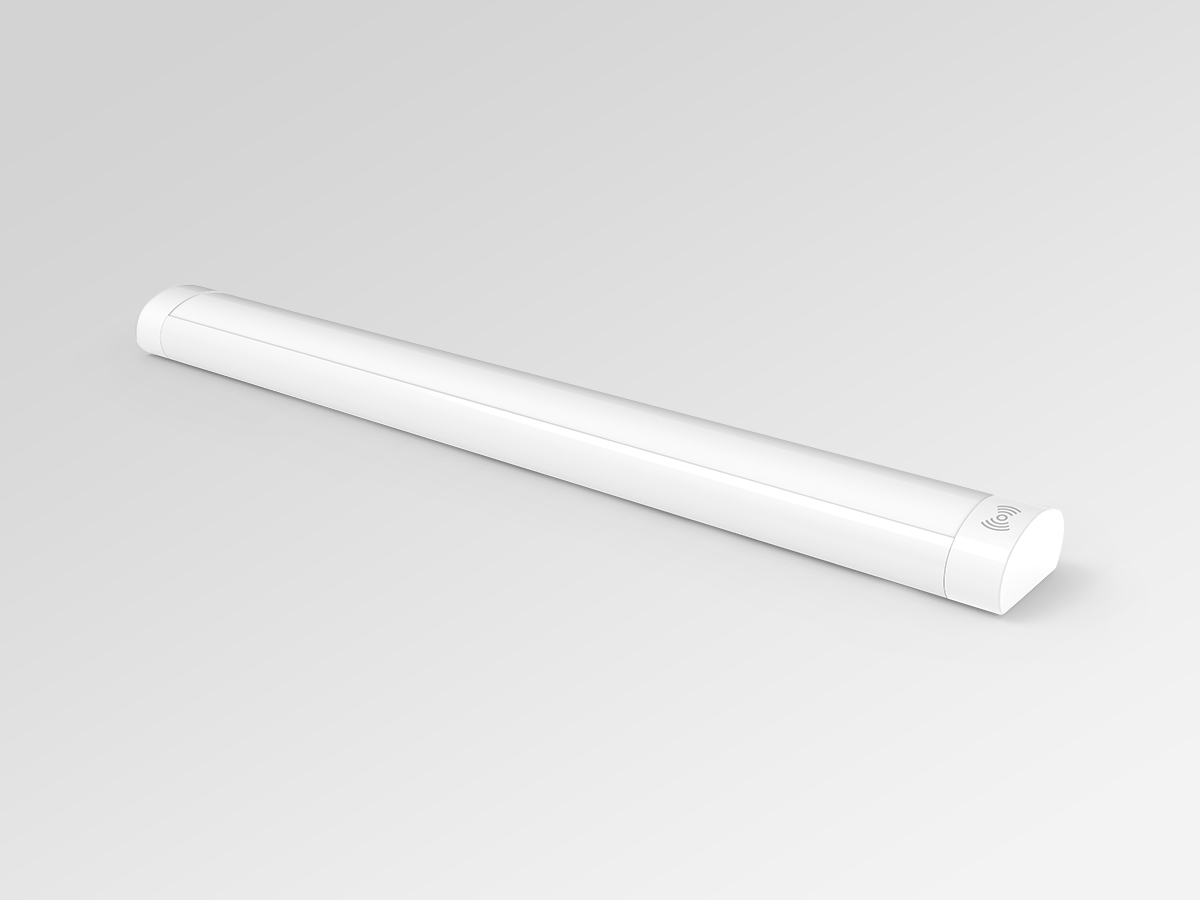

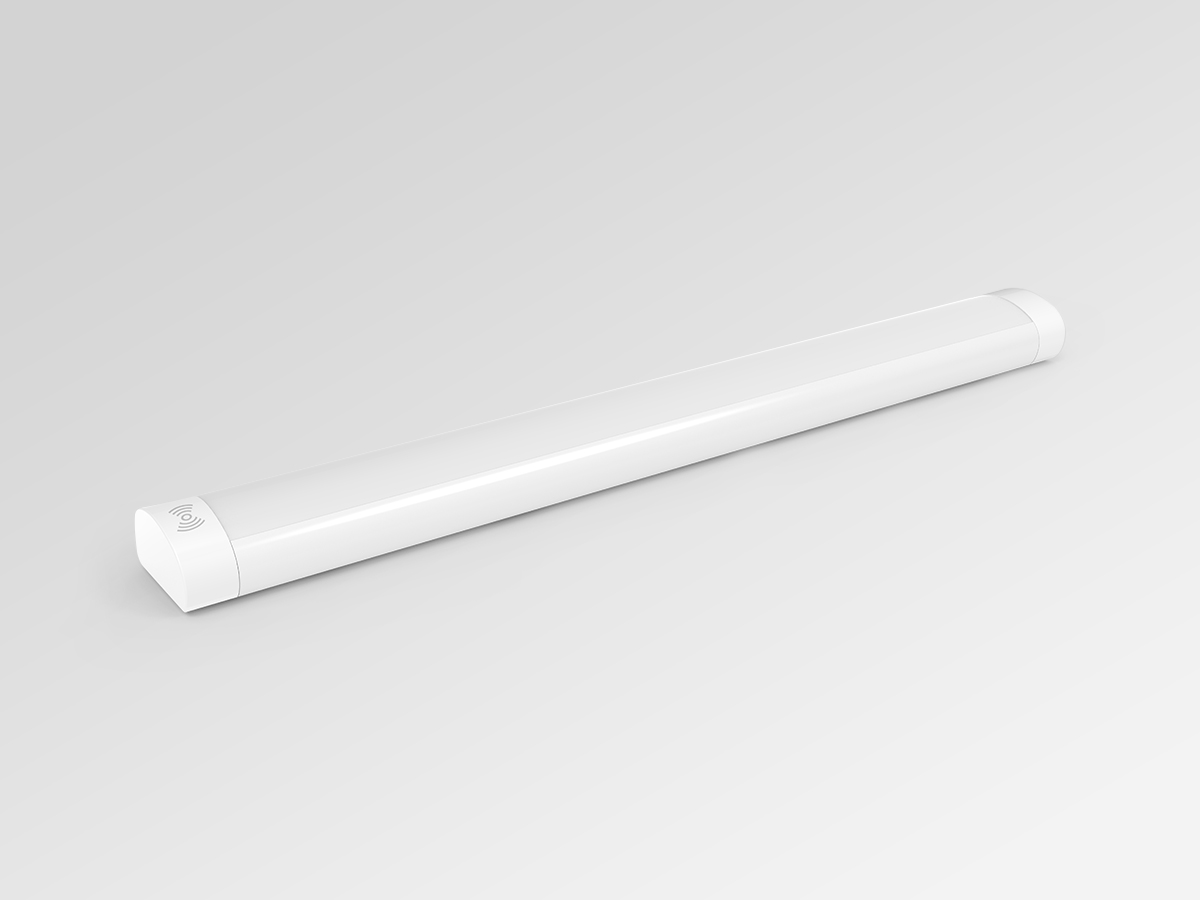

● Slimline batten with sensor is integration of microwave motion sensor and daylight sensor
● Convenient and easy installation
● PA14/play and plug terminal optional
● Even light output, no dark area
● Sealed LED diffuser, insect and dust proof
● Flicker free built-in driver
● Surface mount or suspended mount
● CE RoHS SAA C-tick approved
● 3 years wrranty
Applications:
| ● Warehouses | ● Supermarkets | ● Shopping Malls |
| ● Office Buildings | ● Workshops | ● Car Parks |
Specification
Video
Contact

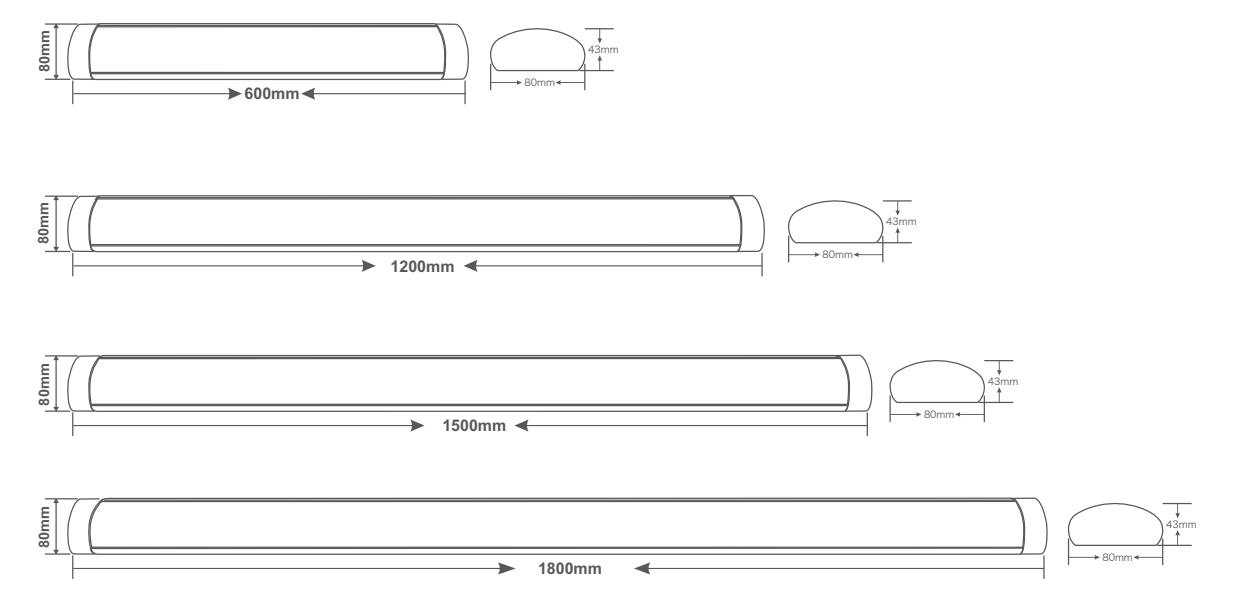

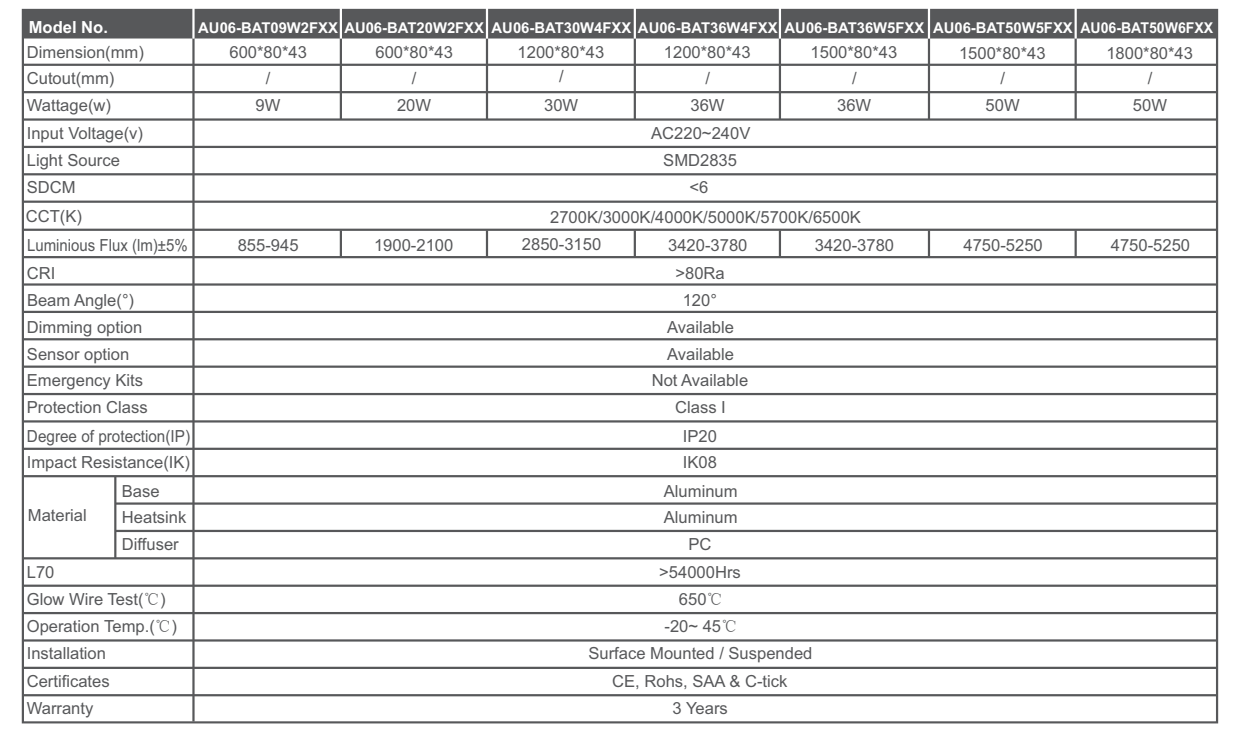

Technical Specifications

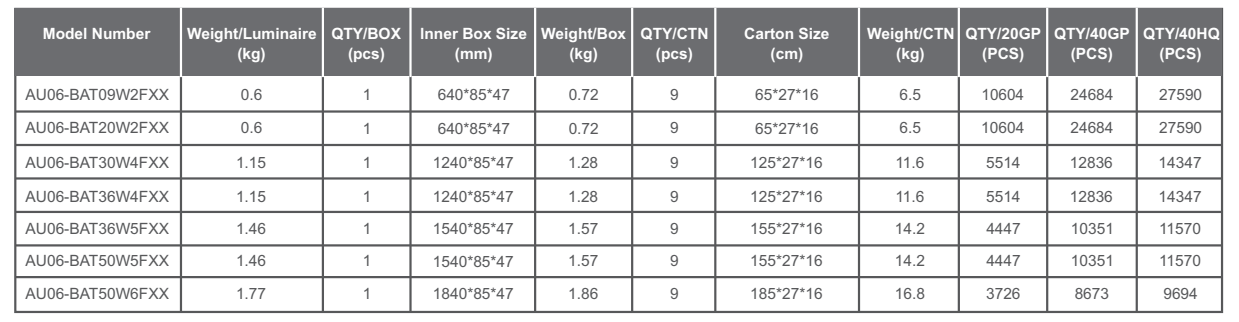

Packing information
Sensor Setting
By selecting the combination on the DIP switches, sensor data can be precisely set for each specific application.
 | Detection area Detection area can be reduced by selecting the combination on the DIP switches to fit precisely each application . |
 | Hold time Refers to the time period the lamp remains at 100% illumination after no motion detected. |
 | Daylight sensor The sensor can be set to only allow the lamp to illuminate below a defined ambient brightness threshold. When set to Disable mode, the daylight sensor will switch on the lamp when motion is detected regardless of ambient light level. 50lux: twilight operation, 15lux, 5lux: darkness operation only. Note that daylight sensor is active only when lamp totally switches off. |
Surface Mounted
Suspended Mounted
