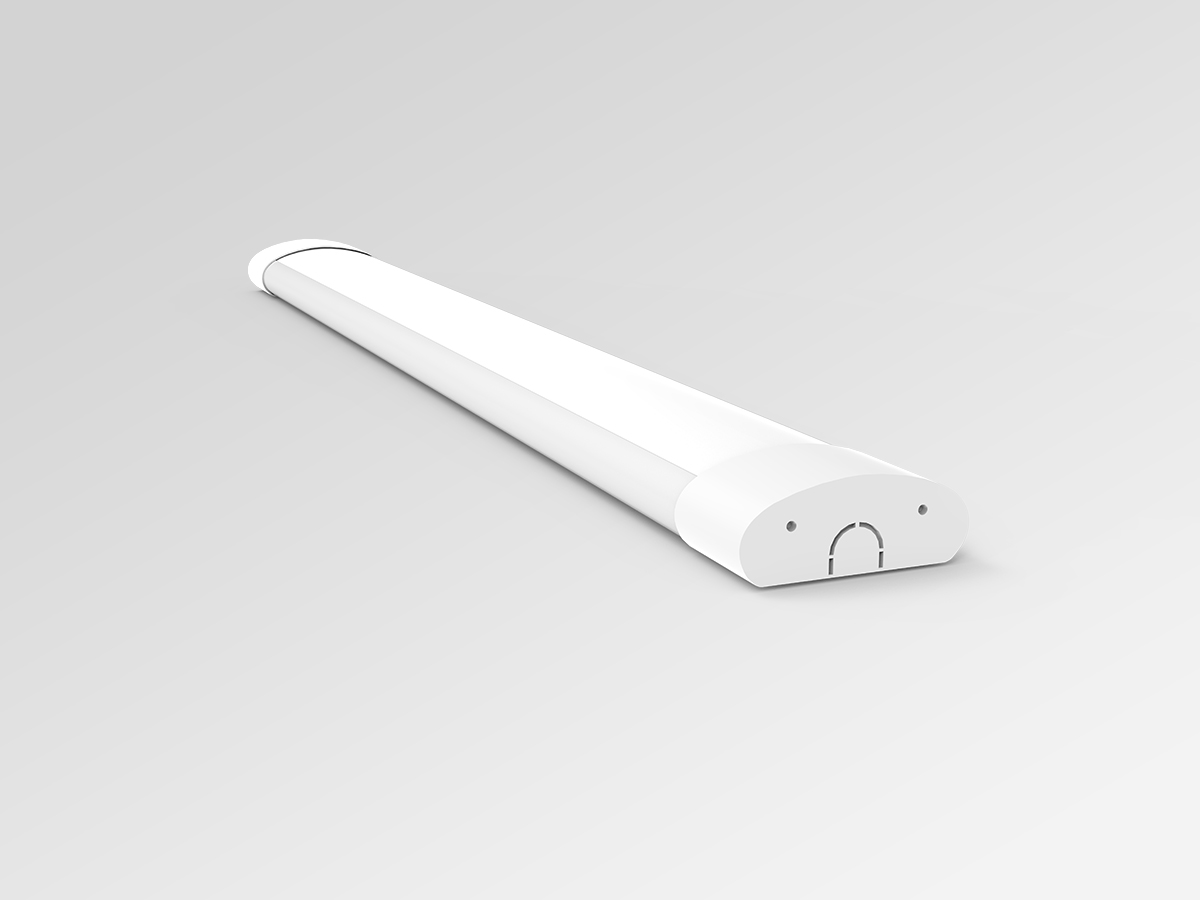

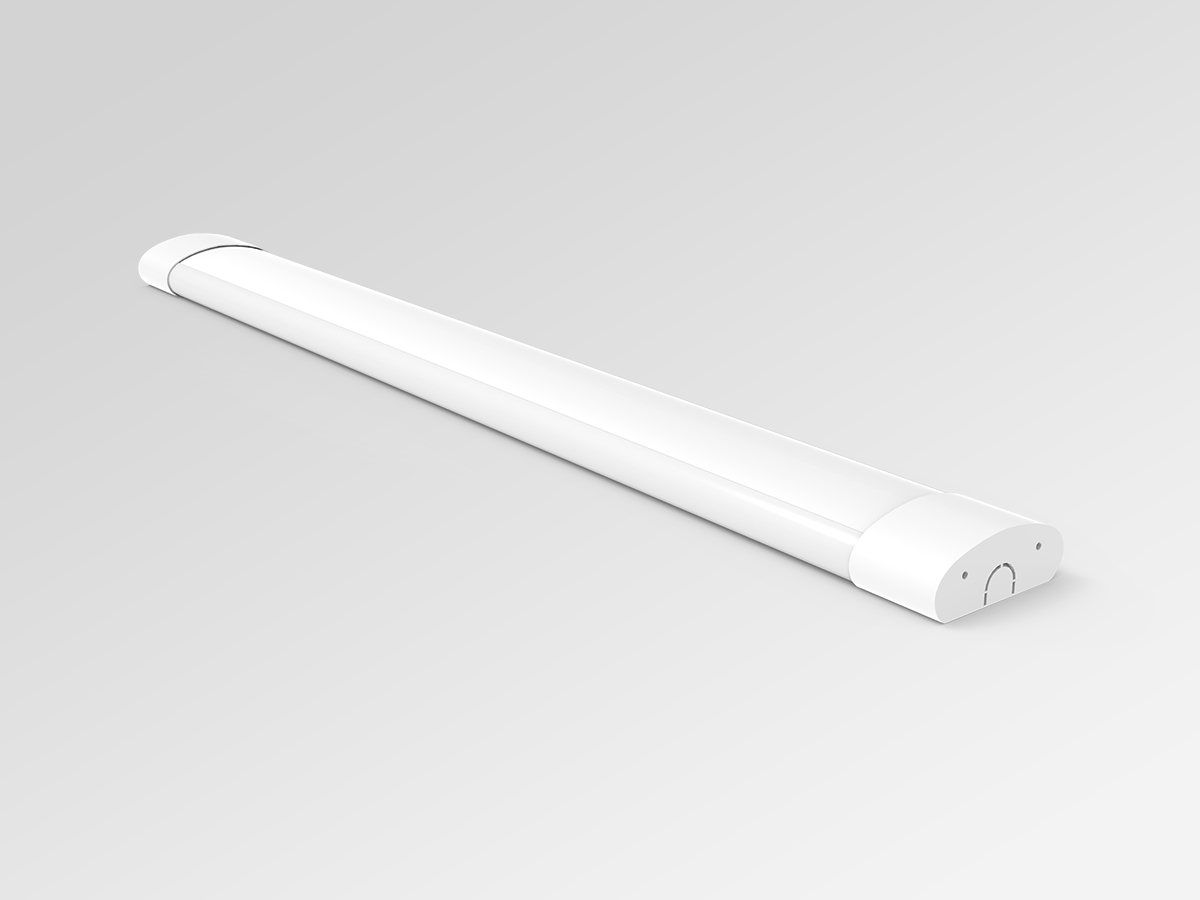

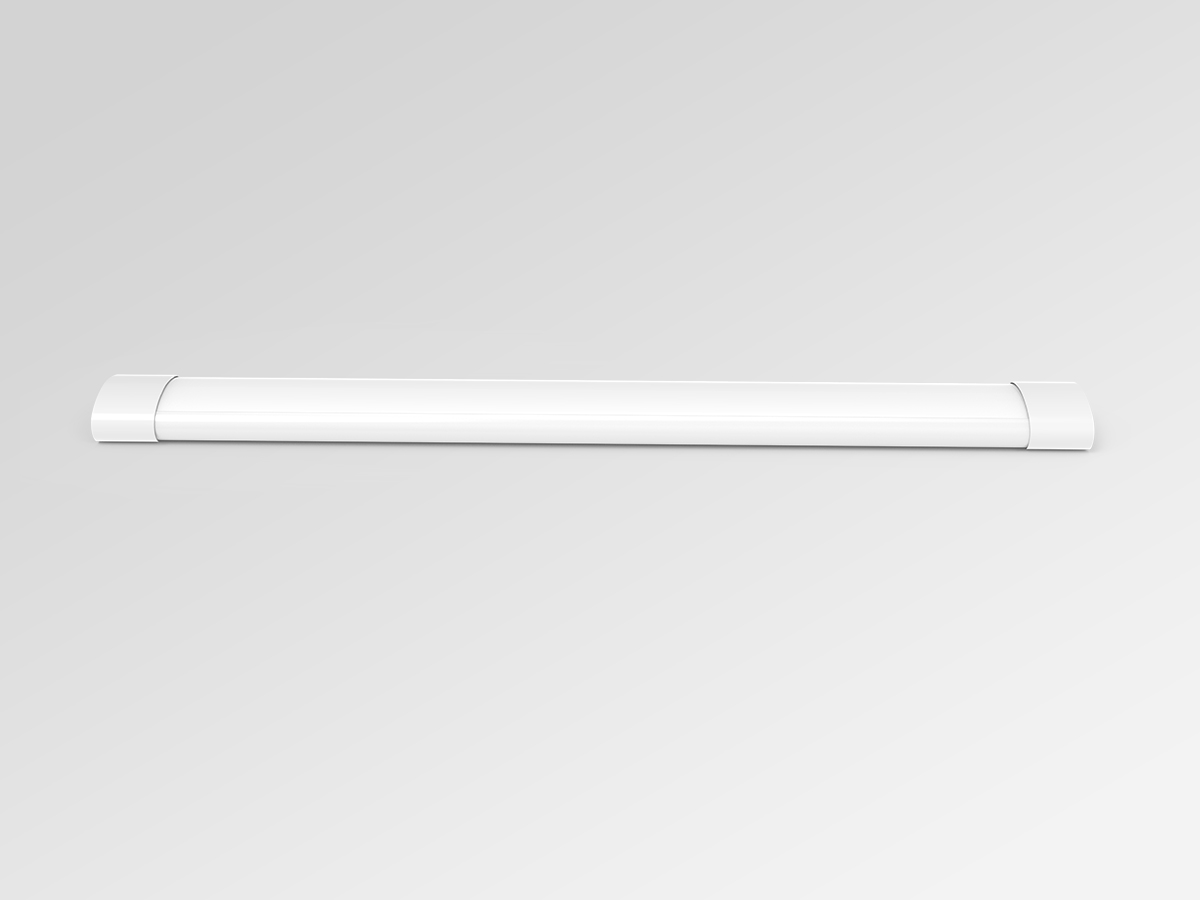

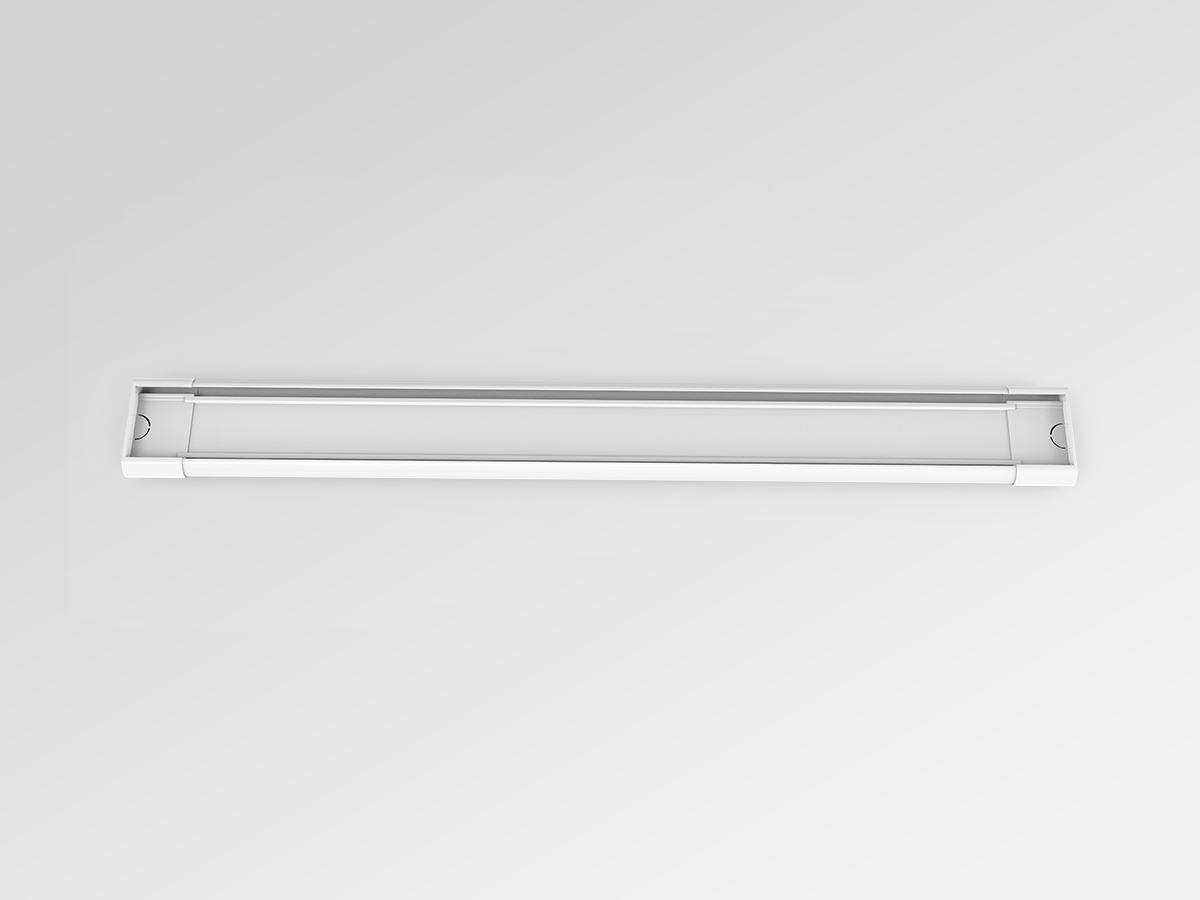

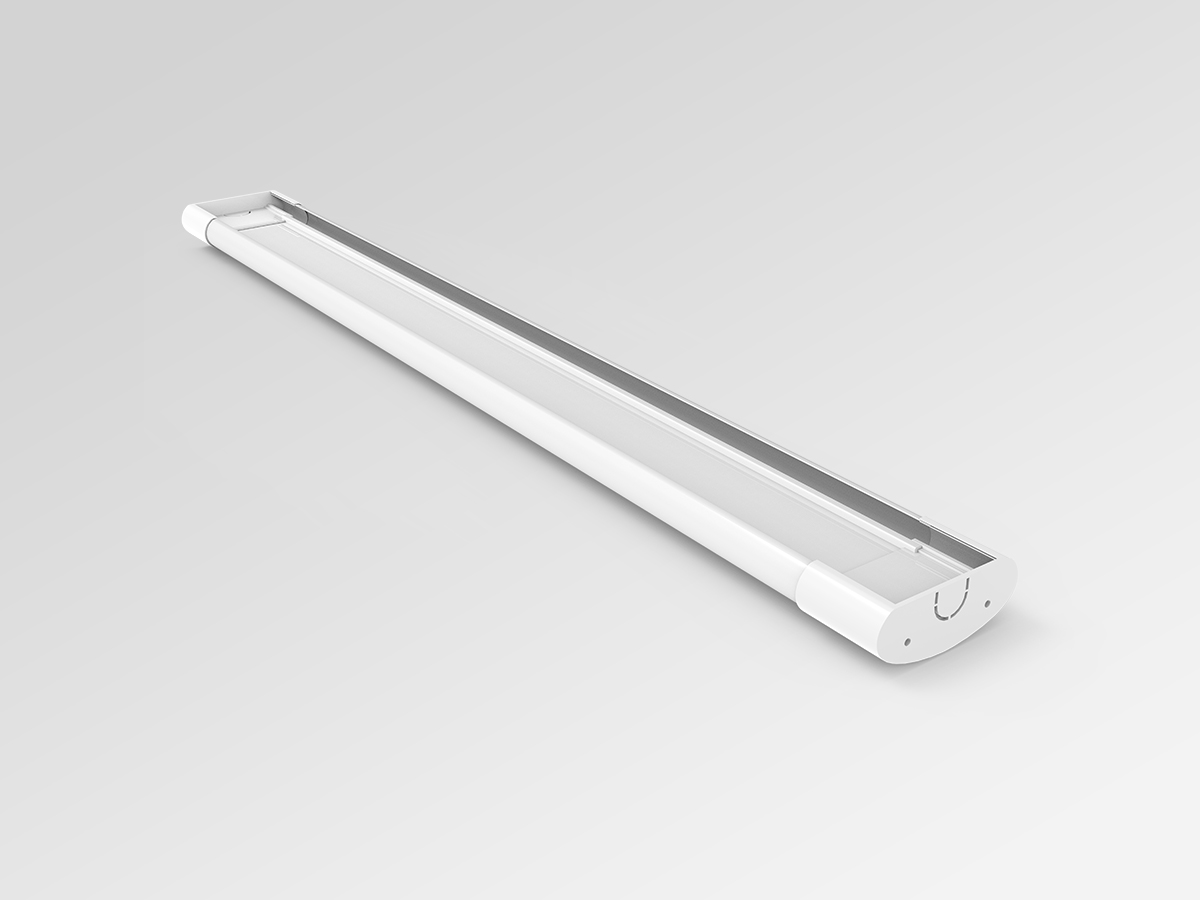

AU08 Slimline Batten


AU08 Slimline batten standard version(图1)


● Slimline batten with sensor is integration of microwave motion sensor and daylight sensor

● Slimline batten with 3cct is select (WW-CW-DL) via DIP switch on lamp

● Convenient and easy installation

● PA16/play and plug terminal optional

● Even light output, no dark area

● Sealed LED diffuser, insect and dust proof

● Flicker free built-in driver

● Surface mount or suspended mount

● CE RoHS SAA C-tick approved

● 3 years wrranty


Applications:

  ● Warehouses● Supermarkets● Shopping Malls
  ● Office Buildings ● Workshops● Car Parks


Specification Video Contact

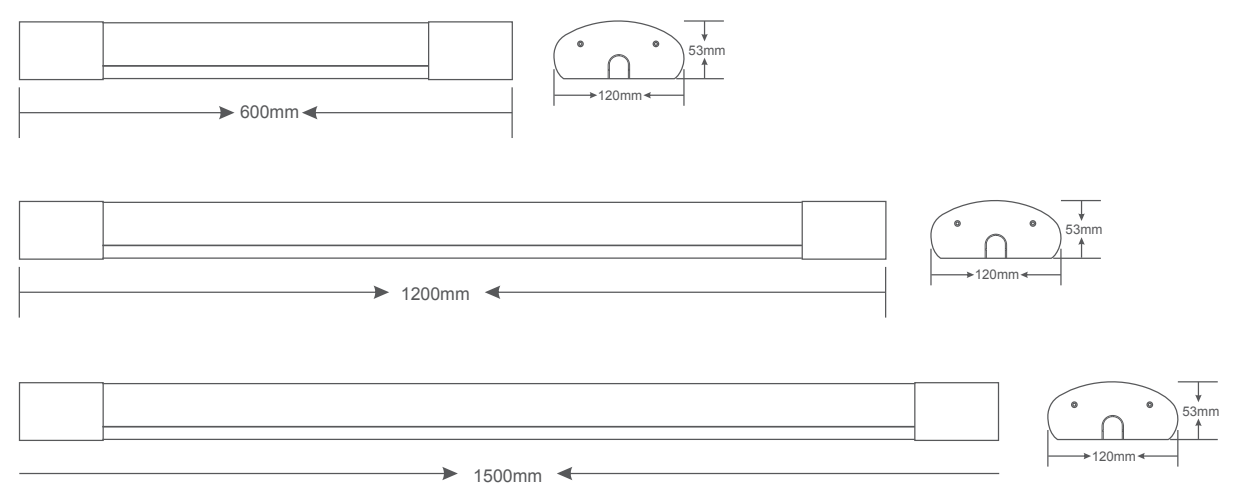

Product Dimention

AU08 Slimline batten standard version(图2)

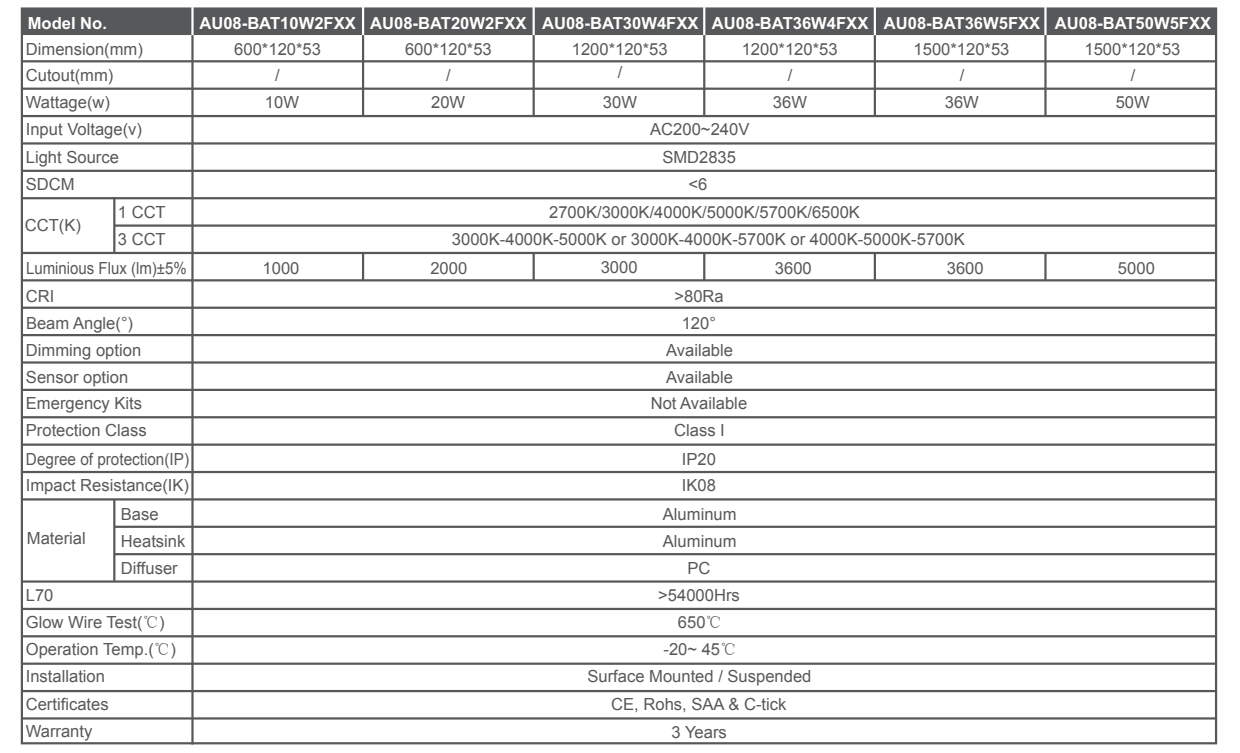

Technical Specifications

AU08 Slimline batten standard version(图3)

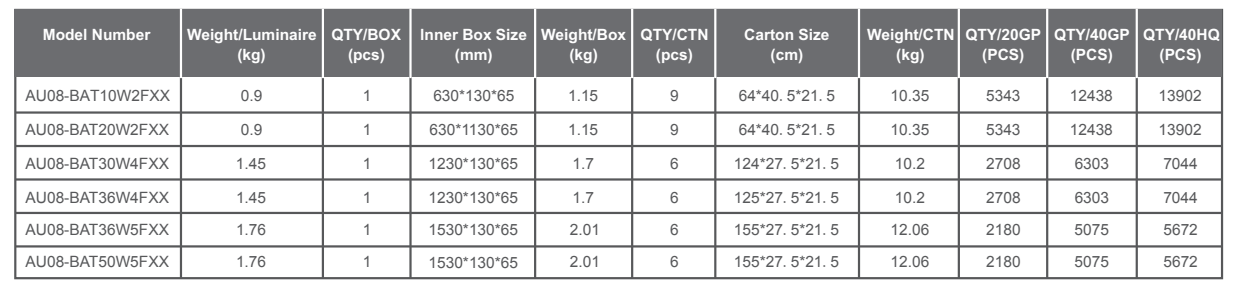

Packing information

AU08 Slimline batten standard version(图4)


Install Instruction


Surface Mounted

AU08 Slimline batten standard version(图5)



Suspended Mounted

AU08 Slimline batten standard version(图6)
